PhysCodeBench.

Benchmarking Physics-Aware Symbolic Simulation of 3D Scenes
via Self-Corrective Multi-Agent Refinement

From language to simulations that obey physics.

Tianyidan Xie1,✉Peiyu Wang2Jiaxin Hu1Yuyi Qian1Yuxuan Wang1Shenyi Wang1Rui Ma3Yanlun Peng4Lanjun Wang5Ying Tai1Jian Yang1Zili Yi1,✉
1Nanjing University2Skywork AI3Jilin University4Great Wall Motor5Tianjin University

✉ Corresponding authors: Tianyidan Xie and Zili Yi

Updated paper arXiv Watch simulations Cite this work

Revised manuscript · Code and dataset release forthcoming

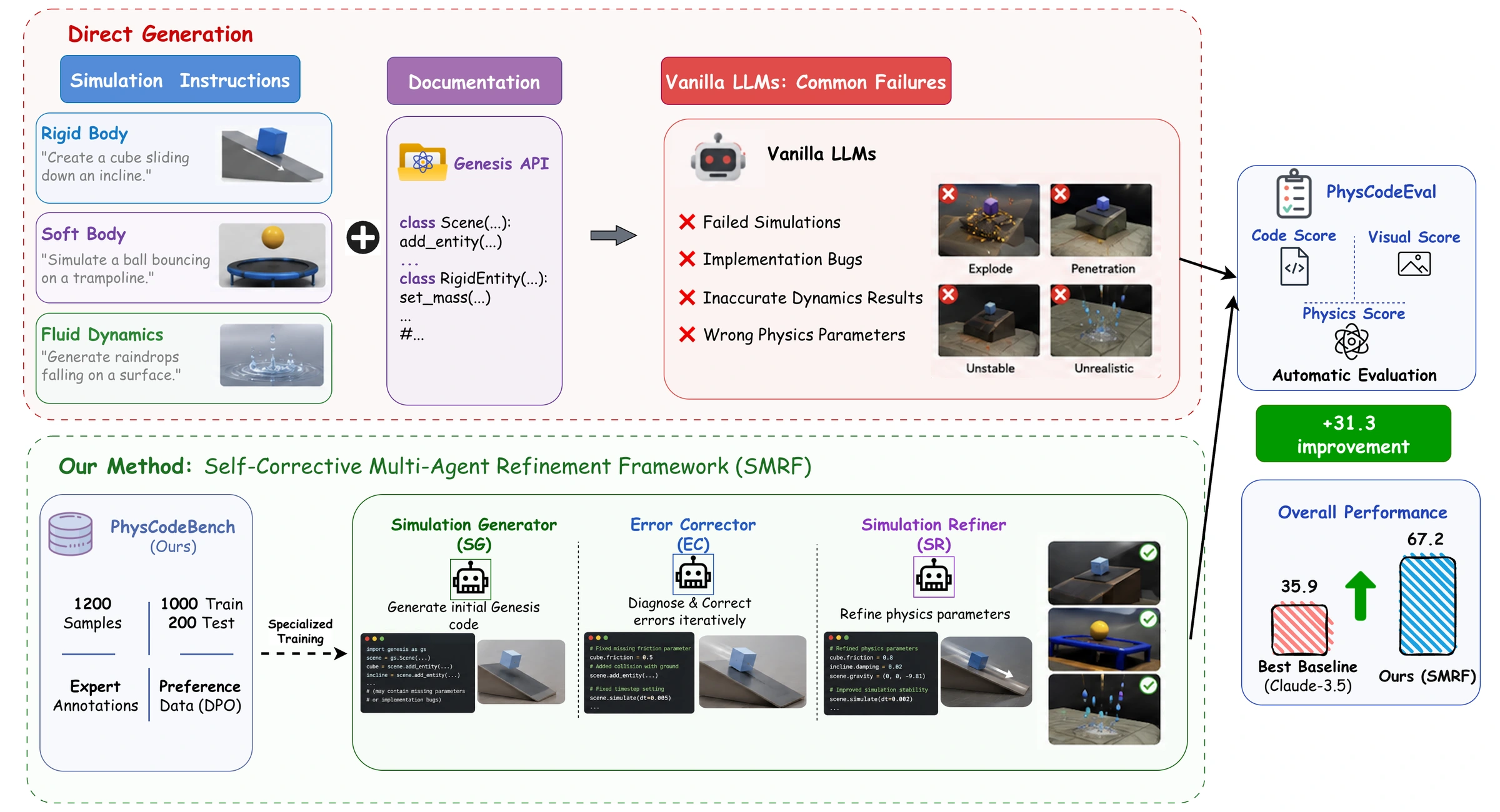

PhysCodeBench pairs simulation instructions with engine documentation. SMRF generates, corrects, and refines simulation code, and PhysCodeEval measures code, visual fidelity, and physics.
One task, three complementary contributions. PhysCodeBench defines the task; PhysCodeEval measures its outputs; SMRF provides a specialized multi-agent reference method.
1,200expert-validated examples
4physical domains
1,000 / 200training / testing examples
3specialized agents

The research

Abstract.

Translating a natural-language description of a physical phenomenon into executable simulation code requires programming expertise and physical reasoning. We introduce PhysCodeBench, with 1,200 expert-validated examples across four physical domains. Its evaluation suite, PhysCodeEval, assesses code quality and visual fidelity, then measures physical correctness directly from engine state through conservation-law residuals and expert-written assertions. A MuJoCo-native test subset enables evaluation across engines.

Our reference method, the Self-Corrective Multi-Agent Refinement Framework (SMRF), separates generation, physics-aware error correction, and refinement into specialized agents. Targeted correction is the main driver of improved physical accuracy. The full framework reaches 67.2 / 100 on the total score and 70.6% on physical assertions, compared with 35.9 and 23.8% for the best proprietary baseline. Its advantage extends to hard scenarios and cross-engine transfer.

01 / In motion

Watch the simulations.

Instructions become executable worlds.
Compare generated rollouts side by side.

“Simulate a cloth falling over a sphere.”

Claude-3.5-SonnetZero-shot
A flat sheet moves past the sphere without wrapping around it.
SMRF + SFT + DPOOur framework
The cloth deforms on contact and drapes around the sphere.

“Simulate raindrops falling with ripple effects.”

Claude-3.5-SonnetZero-shot
Droplets fall toward the water surface with limited surface response.
SMRF + SFT + DPOOur framework
Droplets produce splashes and spreading surface disturbances.

“Pour liquid over a duck with a side-view camera.”

Claude-3.5-SonnetZero-shot
Small particle groups move past the duck with limited visible interaction.
SMRF + SFT + DPOOur framework
A liquid stream interacts with the duck and spreads around its surface.

Original simulation outputs, presented at their original playback speed. Each clip retains its original duration. These visual examples complement the state-based evaluation below.

02 / The benchmark

A test of physical understanding.

PhysCodeBench asks a model to translate a natural-language scenario into a complete, executable physics simulation.

Each example pairs an instruction with an expert-validated Genesis implementation. Annotations cover difficulty, physical laws, object types, and preferences. Seed-level isolation keeps training and testing scenario families separate.

01

Rigid body

Contact, collisions, and motion.

410examples
02

Soft body

Deformation, elasticity, and cloth.

310examples
03

Fluid dynamics

Droplets, flow, and interactions.

275examples
04

Mechanics

Forces, constraints, and stability.

205examples

Two difficulty levels. 709 easy and 491 hard examples; hard scenarios combine interacting laws, multiple phases, or sensitive physical parameters.

Across engines. A 120-instruction test subset includes MuJoCo-native implementations and assertions to evaluate transfer beyond Genesis.

How the dataset is built

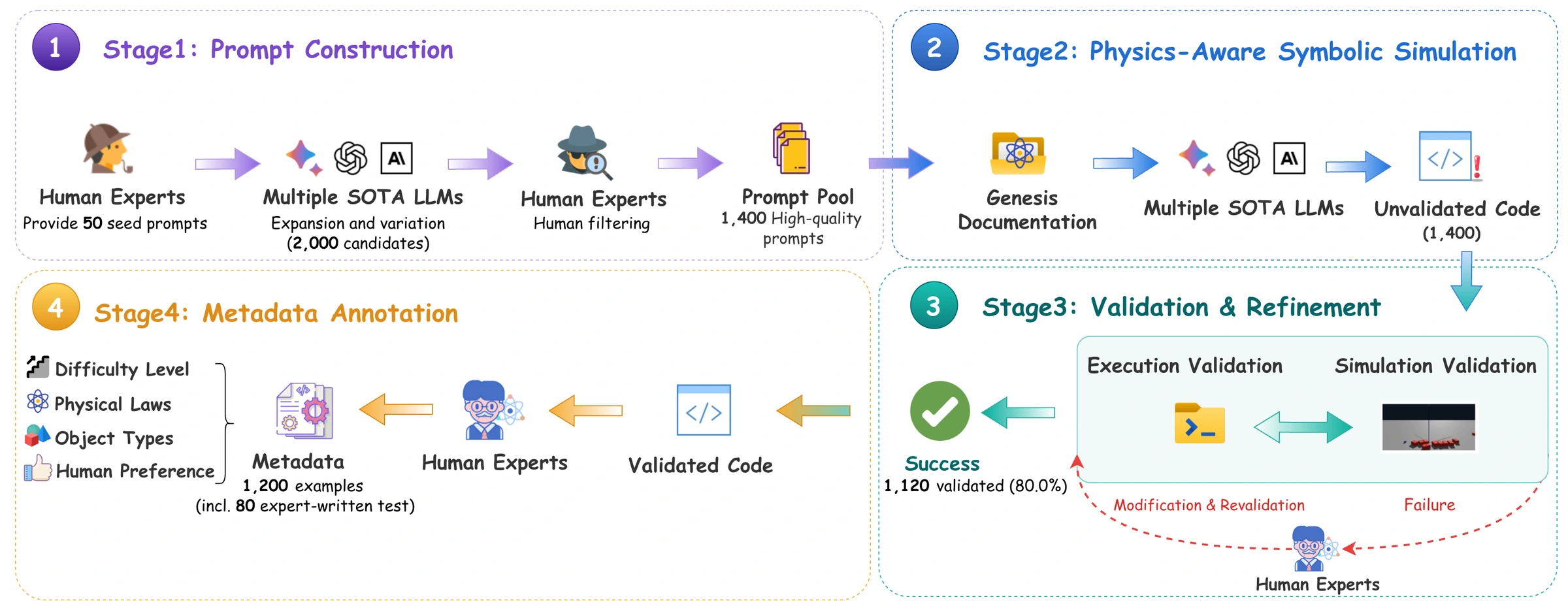

Dataset curation: expert seed prompts, model-assisted expansion, human filtering, executable simulation validation, expert revision, and metadata annotation.
The four-stage curation pipeline combines model-assisted generation with expert validation and annotation. The final test set includes 80 instructions written entirely by experts.

03 / PhysCodeEval

Measure the physics.

Execution, appearance, and physical correctness
answer different questions.

Code quality/ 50

Does it run?

Execution success and production of the expected simulation artifact, checked for existence, size, and format compliance.

Scode
Visual fidelity/ 50

Does it match?

Instruction–video alignment and motion quality, measuring semantic fidelity and identifying unstable or implausible motion.

Svisual
Physical correctness%

Does it obey the laws?

Expert-written assertions read directly from engine state. Assertions of programs that fail to execute count as failed.

Sphys

Total = Scode + SvisualA score out of 100. The physical-assertion pass rate is reported separately.

Conservation checksResiduals on executed trajectories provide a companion diagnostic for momentum, energy, and scenario-appropriate constraints.

From an instruction to a physical check

436 expert-written assertions across the 200 test examples.

Motion & contact

“A cube sliding down an incline.”

Check that displacement stays within 10° of the downhill direction, with no penetration below the incline plane.

Elastic response

“A ball bouncing on a trampoline.”

Check that the first rebound height falls between 0.6 and 0.95 times the initial height.

Fluid dynamics

“Raindrops with ripple effects.”

Check for at least three concentric surface waves within 0.3 seconds of the first impact.

Assertions are authored from the instruction alone, independently of candidate implementations, and reviewed by a second expert. This provides a direct physical check alongside perceptual scores.

04 / The reference framework

Generate. Correct. Refine.

SMRF · Self-Corrective Multi-Agent
Refinement Framework

Three specialized agents share the work of turning a scenario into a physically grounded simulation.

  1. 01 / SG

    Simulation Generator

    Generate initial Genesis code from the instruction and engine documentation.

    Supervised fine-tuning
  2. 02 / EC

    Error Corrector

    Use runtime feedback to diagnose failed executions and attempt up to three rounds of correction.

    Specialized error–fix training
  3. 03 / SR

    Simulation Refiner

    After successful execution, refine physical parameters and code quality using learned preferences.

    SFT + preference optimization
Explore the full SMRF framework

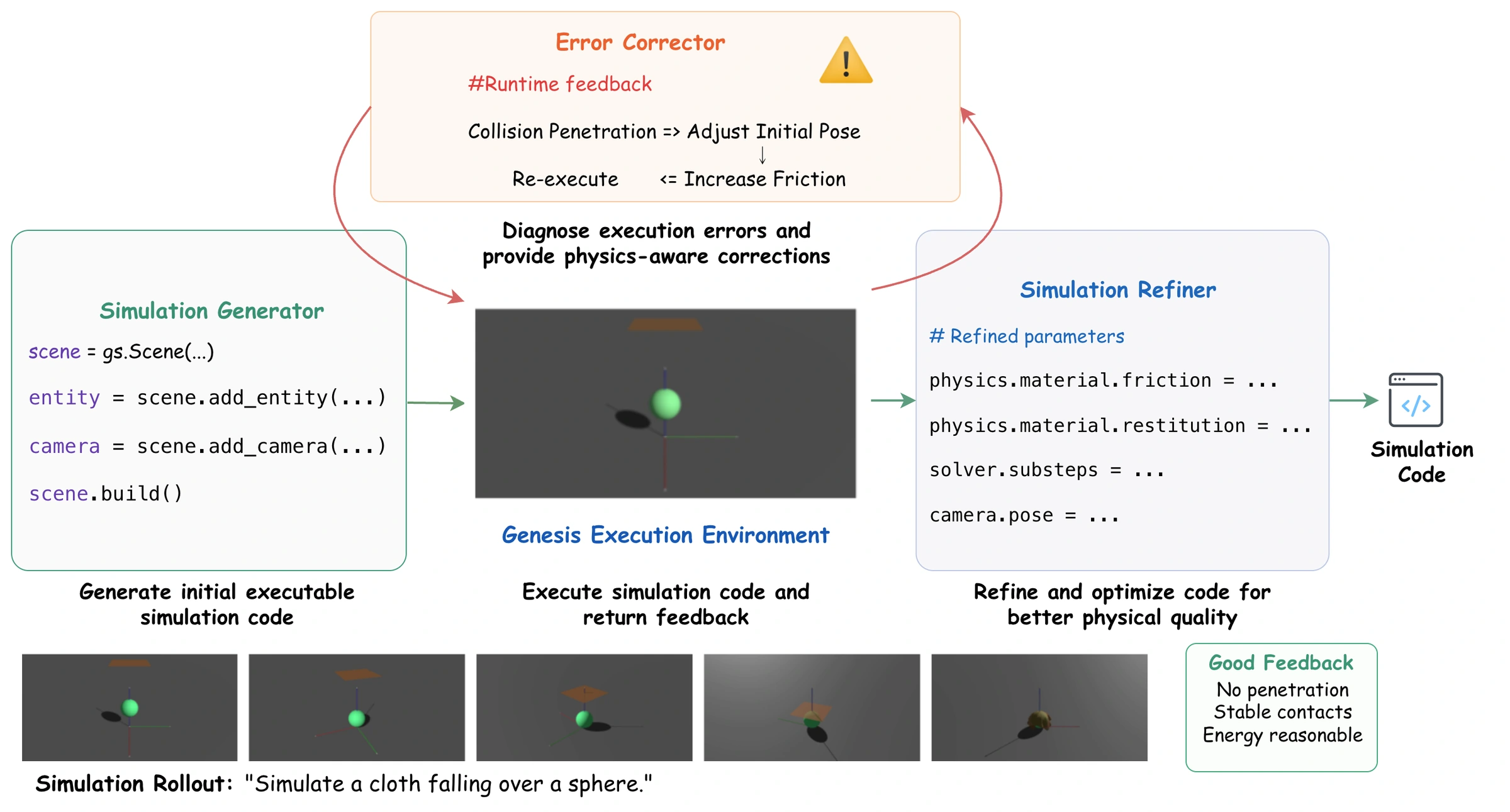

SMRF execution flow: the generator creates code, runtime failures invoke the error corrector, and successful executions proceed to the simulation refiner.
The error corrector is triggered by execution failure. Detecting and repairing physics errors in programs that already run remains an open direction.

05 / Evaluation

Results, on three axes.

Download results
67.2/100SMRF total score
+31.3ptsover the best proprietary baseline
70.6%physical assertions passed

Genesis test set · 200 examples · avg@5

Results reported in Table 1 of the revised manuscript. Code and visual scores are each out of 50; total is out of 100. Physical correctness is the assertion pass rate.
Model Code /50 Visual /50 Total /100 Physics %
SMRF + SFT + DPOMulti-agent 33.2 34.0 67.2 70.6
SMRF + SFTMulti-agent 30.5 31.1 61.6 63.5
DRDQ-32B + SFT + DPOSingle-agent · fine-tuned 18.4 19.1 37.5 32.1
Claude-3.5-SonnetProprietary · zero-shot 17.0 18.9 35.9 23.8
DRDQ-32B + SFTSingle-agent · fine-tuned 17.2 18.2 35.4 28.9
GPT-4oProprietary · zero-shot 15.7 18.1 33.8 21.6
SMRF (base)Multi-agent 16.2 17.5 33.7 30.4
Gemini-2.0-ProProprietary · zero-shot 14.8 16.8 31.6 19.7
DeepSeek-R1Open-weight · zero-shot 13.8 15.7 29.5 17.9
DRDQ-32BOpen-weight · zero-shot 12.0 15.6 27.6 16.2
QwQ-32BOpen-weight · zero-shot 6.7 8.8 15.5 7.4
Qwen-2.5-32BOpen-weight · zero-shot 0.8 1.1 1.9 0.9
Expert reference (oracle)Oracle · reference implementations 50.0 44.1 94.1 98.6

DRDQ-32B = DeepSeek-R1-Distill-Qwen-32B. All systems use the manuscript's shared inference budget. The expert reference row is an oracle, not a competing model. Full protocols, ablations, and limitations are in the updated paper.

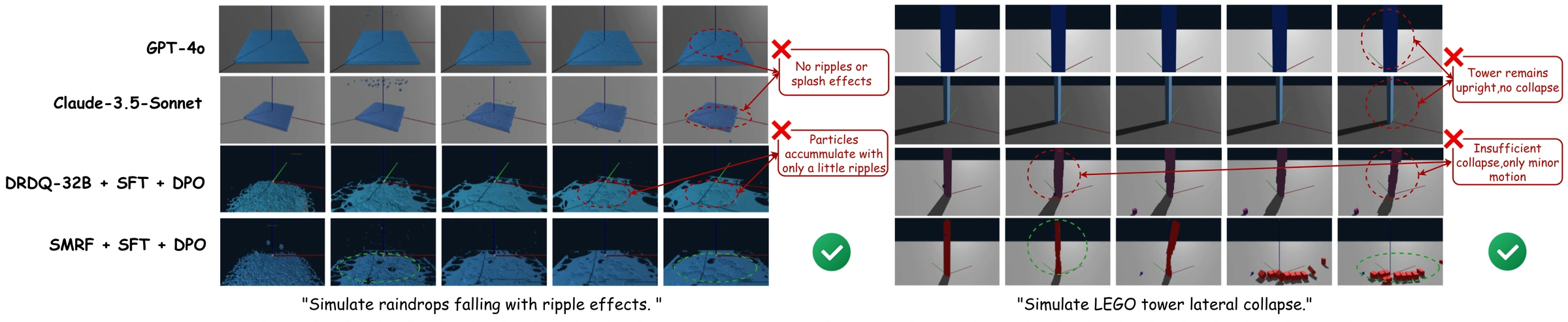

Qualitative comparison of four systems on rain with ripple effects and lateral collapse of a LEGO tower. SMRF produces ripples, splashes, and progressive toppling.
Frame sequences from the paper: fluid interactions and progressive rigid-body collapse.

06 / A closer look

Where the gains come from.

Analysis data

Gains across all four physical domains.

The full framework leads the best proprietary baseline by 29.5–32.8 total-score points across domains. Fluids remain the most challenging setting, requiring coherent flow, interactions, and numerical stability.

Selected methods from the domain breakdown in the technical appendix. All values are total scores out of 100.
Model Rigid Soft Fluid Mechanics
Claude-3.5-Sonnet 39.9 32.9 29.9 40.8
DRDQ-32B + SFT + DPO 41.4 34.5 31.5 42.4
SMRF + SFT 66.2 58.4 54.3 67.1
SMRF + SFT + DPO 72.3 63.2 59.4 73.6

Compound physics is still difficult.

Hard scenarios combine three or more physical laws, multiple phases, or sensitive parameter regimes. SMRF reaches 53.0 on hard tasks, compared with 24.5 for the strongest fine-tuned single agent, a 28.5-point advantage.

Total score by difficulty, on 116 easy and 84 hard test examples.
Model Easy Hard
GPT-4o 43.0 21.1
Claude-3.5-Sonnet 45.2 23.1
Gemini-2.0-Pro 40.7 19.0
DRDQ-32B + SFT + DPO 46.9 24.5
SMRF (base) 42.8 21.1
SMRF + SFT 72.1 47.1
SMRF + SFT + DPO 77.5 53.0

Specialized correction contributes the most.

Removing the Error Corrector reduces the total by 11.3 points and the assertion pass rate by 17.8 percentage points. Removing refinement or preference alignment also reduces both metrics.

Component ablation on the 200-example Genesis test set, avg@5. Physics is the separate physical-assertion pass rate.
Configuration Total /100 Physics %
Full SMRF + SFT + DPO 67.2 70.6
without EC 55.9 52.8
without SR 58.4 59.8
SR without DPO 61.6 63.5

From Genesis to MuJoCo

Testing transfer beyond one engine's API.

41.2zero-shot transfer score

Genesis-trained SMRF transfers to MuJoCo without additional training and exceeds the evaluated zero-shot baselines. With 250 API-mapping examples, its score increases to 58.3.

This retains 87.9% of its Genesis score on the same 120 instructions (58.3 vs. 66.3). The adapted and zero-shot settings are shown separately.

MuJoCo-native test subset: 120 instructions. Adaptation examples are additional MuJoCo API-mapping samples.
Approach Adaptation examples Total /100
GPT-4o (zero-shot) 0 26.8
Gemini-2.0-Pro (zero-shot) 0 24.9
Claude-3.5-Sonnet (zero-shot) 0 28.5
DRDQ-32B + SFT + DPO (adapted) 250 36.7
SMRF (Genesis-trained, transfer) 0 41.2
SMRF + adaptation samples 250 58.3

Conservation diagnostics

81.4%vs. 35.3% for Claude-3.5-Sonnet

Mean pass rate across four checks: momentum drift, free-fall or incline motion, and elastic and inelastic energy behavior. Checks use a 5% tolerance on executed trajectories in the rigid-body and mechanics subset; each applies to a different set of scenarios.

Human evaluation

4.5Physical accuracy
4.2Code readability
4.6Usefulness

Ratings on a 1–5 scale from 10 participants across 40 prompts where all compared systems produced executable outputs. SMRF received the highest ratings in all three dimensions.

Scope and current limitations
  • The task targets simulation through high-level engine APIs. It does not evaluate implementation of numerical solvers.
  • The Error Corrector runs after execution failures. Physically incorrect programs that already execute can bypass correction.
  • Cross-engine evaluation covers 120 of the 200 test instructions, with approximate fluid coverage in MuJoCo.
  • The three-agent pipeline incurs additional inference cost compared with a single agent.

07 / Reference

Build on this work.

@article{xie2026physcodebench,
  title={PhysCodeBench: Benchmarking Physics-Aware Symbolic Simulation
         of 3D Scenes via Self-Corrective Multi-Agent Refinement},
  author={Xie, Tianyidan and Wang, Peiyu and Hu, Jiaxin and
          Qian, Yuyi and Wang, Yuxuan and Wang, Shenyi and
          Ma, Rui and Peng, Yanlun and Wang, Lanjun and
          Tai, Ying and Yang, Jian and Yi, Zili},
  journal={arXiv preprint arXiv:2604.23580},
  year={2026},
  url={https://arxiv.org/abs/2604.23580}
}

Code, data, and evaluation toolsRelease forthcoming. For questions about the project, contact Tianyidan Xie.

Read the updated paper

This page presents the revised manuscript. The arXiv link currently points to the earlier public version.
